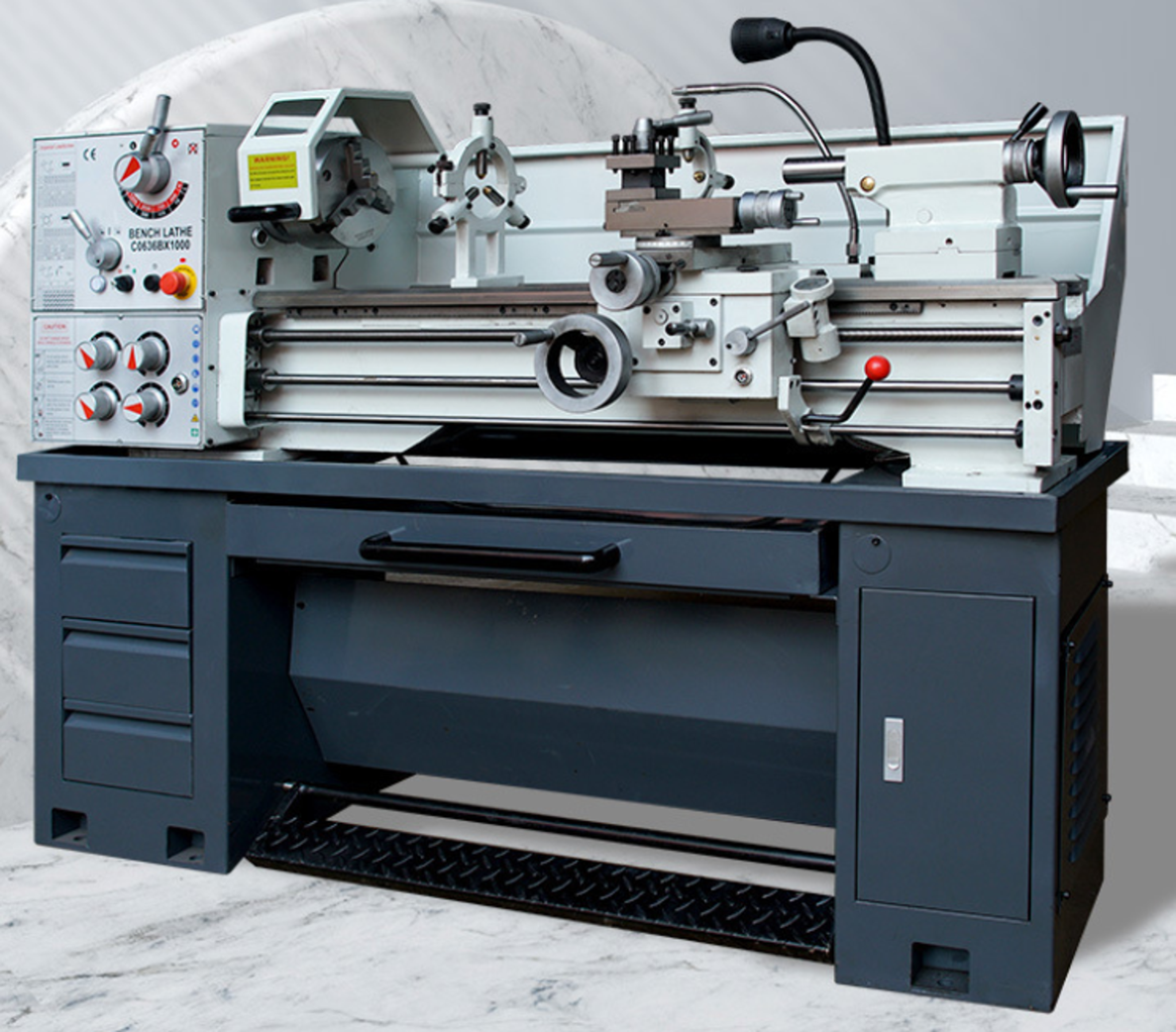

C0636B Bench Lathe Model C0636B Technical Specifications Max. swing over bed: 360mm Max. swing over cross slide: 212mm Max. swing over gap: 491mm Distance between centers: 1000mm Width of bed: 187mm Spindle bore and nose: A:38mm D1-4/B:51mm D1-5 Spindle taper: A:MT5/B:MT6 Speed step: 8 steps Cross slide travel: 170mm Compound rest travel: 90mm Spindle speed range: A:70-2000rpm / B:90-2000rpm Max. section of tool: 16×16mm Threads inch pitches: 4-56T.P.I. (34 kinds) Threads metric pitches: 0.4-7mm (26 kinds) Longitudinal feeds range: 0.052-1.392mm/rev (32 kinds) Cross feeds range: 0.009-0.253mm/rev(Metric lathe); 0.015-0.402mm/rev(Inch lathe) Tailstock quill taper and travel: MT4 / 100mm Tailstock quill diameter: 32mm Main motor power: 1.5kw Coolant pump power: 40w Packing size: 1935×750×1500mm Net Weight / Gross Weight: 600kg / 700kg Standard Accessories Machine stand Coolant system 3 jaw self centering chuck 160mm Foot brake 4 jaw independent chuck 200mm Dead center Face plate Chasing dial indicator Follow rest Splash guard Steady rest Tool box with tools Working light

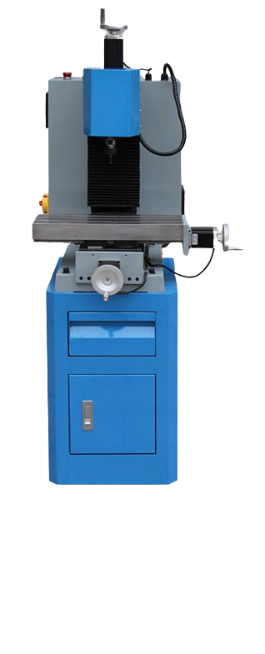

Type XK7113A CNC Milling Machine Full English Technical Specifications Worktable Worktable size (L×W): 400×140mm T-slots size (Quantity×Width×Spacing): 3-12/40mm Travel X axis travel: 220mm Y axis travel: 120mm Z axis travel: 200mm Machining Range Max. drilling diameter: 13mm Max. milling diameter: 13mm Max. tapping diameter: N/A Spindle Distance from spindle center to column: 187.5mm Distance from spindle nose to worktable surface: 215mm Spindle speed: 3000rpm Spindle taper: ER20 Spindle power: 400w Main motor type: Brushless motor Feed System Feeding motor torque (X/Y/Z axis): 2.0/2.0/3.0 N.m Feeding motor type: Stepper motor, Z axis with brake CNC controller system: Mach 3 / Linux Machine Size & Weight Overall size (L×W×H): 673×775×7700mm Net Weight / Gross Weight: 125kg / 155kg

Type X6325; Model: X6325 3~380V/50Hz X-axis Automatic Feed Z-axis Electric Lifting 3-Axis SINO Digital Readout System 8" / 200mm Universal Dividing Head Table Size: 1270×254 MM Longitudinal Travel of Table: 800 MM Cross Travel of Table: 400 MM Vertical Travel of Table: 500 MM Spindle Speed Range: 80-5440 R.P.M (16 speeds) Spindle Travel: 127 MM Spindle Feed Rate: 0.04/0.08/0.15 Distance from Spindle Nose to Table: 500 MM Spindle Taper: R8 Spindle Motor Power: 2.2 KW Milling Head Left & Right Rotation: 90° Milling Head Forward & Backward Rotation: 45° Overall Machine Weight: 1650 KG Packing Dimension: 1516×1550×2080 MM Standard Packing List: Coolant Water Pump: 1 piece Power Feed Unit: 1 piece 8" / 200mm Universal Dividing Head: 1 piece 6 Inch Machine Vise: 1 piece 58 Pcs Clamping Kit: 1 set R8 Chuck Set: 1 set Draw Bar: 1 piece Working Lamp: 1 piece Tool Box: 1 piece Coolant Tray: 1 set Technical Documents: 1 copy Machine Operation Manual (Mechanical & Electrical): 1 copy Spare Parts Catalog for Maintenance: 1 copy Certificate of Conformity: 1 copy Packing List: 1 copy

ZAY7045V Mill / Drill Machine (Variable Speed) Technical Specifications Features Variable spindle speed Supports milling, drilling, tapping, boring and reaming Headstock swivels ±45° vertically Precision micro feed function Adjustable gibs for table clearance Strong rigidity, powerful cutting force and accurate positioning Technical Parameters Max. drilling capacity: 45mm Max. tapping capacity: 20mm Max. face mill capacity: 80mm Max. end mill capacity: 32mm Max. distance from spindle nose to table: 447mm Min. distance from spindle axis to column: 286mm Spindle travel: 130mm Spindle taper: MT4 Range of spindle speed (2 steps): 100–530rpm, 530–2800rpm Auto-feeding steps of spindle: 2 steps Auto-feeding value of spindle: N/A Swivel angle of headstock: ±45° Table size: 800×240mm Forward and backward travel of table: 210mm Left and right travel of table: 500mm DC Motor power: 1.5kw (2HP) Net Weight / Gross Weight: 375kg / 327kg Packing size (L×W×H): 770×880×1150mm Loading amount per 20" container: 36pcs complete with Optional Accessories: X-axis automatic power feed unit Coolant system Machine stand with oil tray Working lamp 3-axis digital readout (DRO) Spindle speed indicator

analog dial indicator with magnetic stand

plate datar padat yang digunakan untuk mengukur dengan sempurna seakurat mungkin Tata letak dan kerataan benda kerja serta Pengaturan dan penyetingan alat uji dan alat ukur presisi.

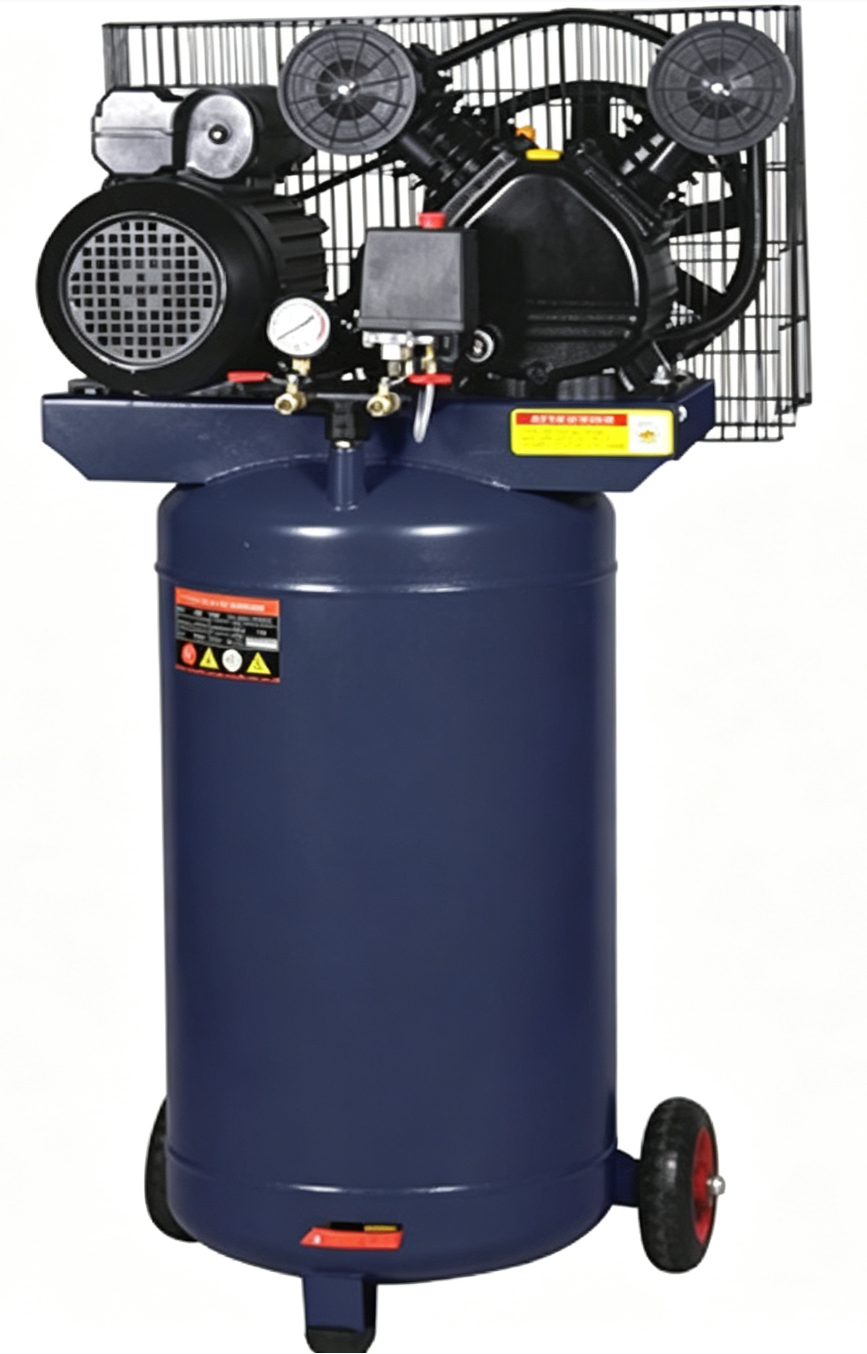

Power: 2.2 kW / 3 HP Input Voltage: 3~380V/50Hz Speed: 1050 rpm Air flow: 250 L/min (9.0 cfm) Tank capacity: 150L Maximum pressure: 12 bar Weight: 110 kg Packing Dimensions (L × W × H): 72 × 57 × 139 cm Packing: Wooden case

AIR LUBRICATOR FOR GREASE (POMPA GEMUK TENAGA ANGIN) -TIPE : AIR LUBRICATOR FOR GREASE - capacity: 20 L -QUANTITY DUS KECIL/ BESAR : 1 Set

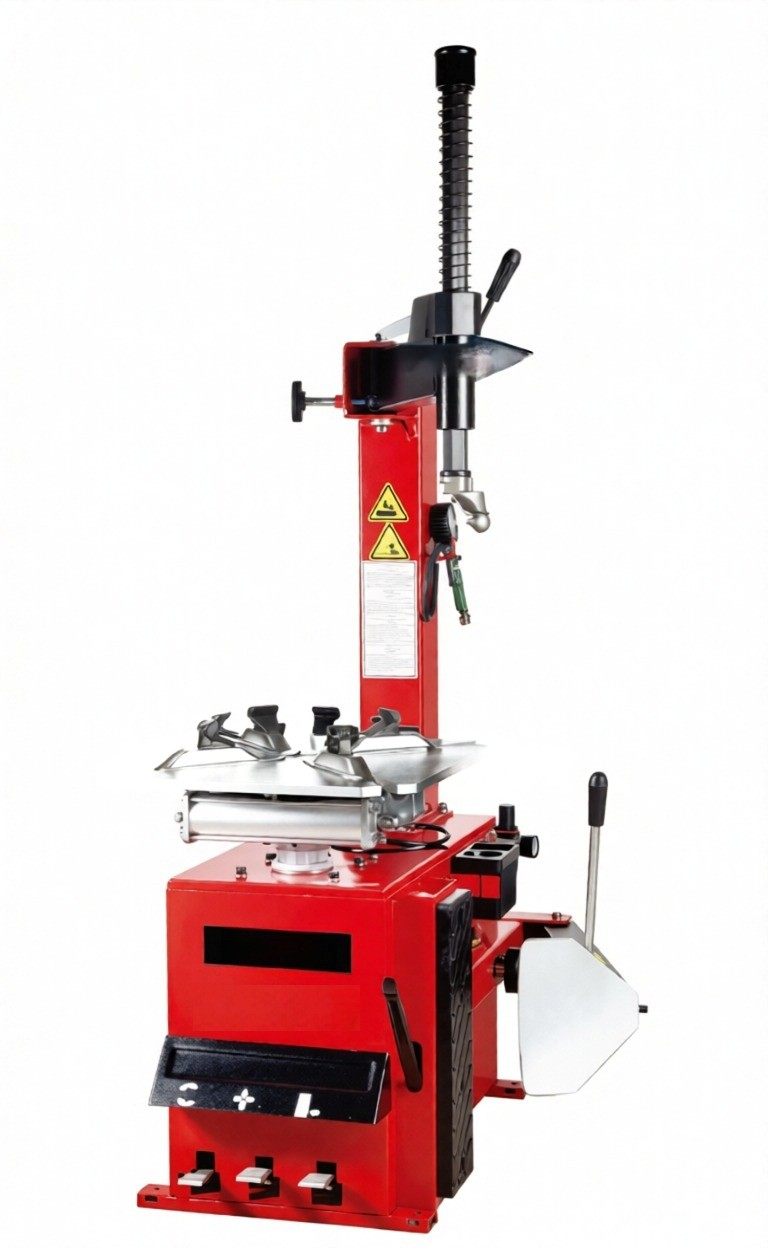

Specifications: - Brand: WMT - Model: U-226 - Type: semi-automatic tilting tower - External clamping: 10~21" - Internal clamping: 12~24" - Max. wheel diameter: 1000 mm (39") - Max. wheel width: 355 mm (14") - Net / gross weight: 210 / 234 kg (462 / 514.8 lbs) - Package dimension: 960*760*980 mm - Air supply pressure: 8-10 bar (116-145 psi) - Optional power supply: 110V (1ph) / 220V (1/3ph) / 380V (3ph) - Noise level: 75 dB or less

External clamping: 10~21” Internal clamping: 12~24” Max. wheel diameter: 39” Max. wheel width: 14” Air supply pressure: 8–10 bar (116–145 psi) Optional power supply: 220V/50Hz Motor power: 1.1 kW Noise level: ≤75 dB Net weight / Gross weight: 166 / 190 kg Package dimensions: 960 × 760 × 800 mm

ARBOR PRESS 1 TON

17 pcs clucth aligning tool set
